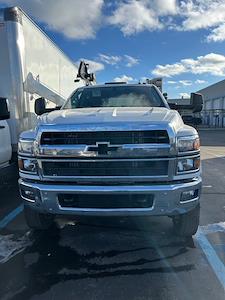

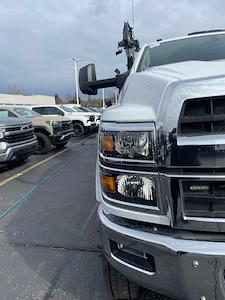

2024 Chevrolet Silverado 6500 Crew Cab DRW 4WD Palfinger Crane Body
Vehicle Notes
Read More…
Chassis Details
Vehicle Options
- DRIVER INFORMATION CENTER 4.2-INCH DIAGONAL COLOR DISPLAY INCLUDES DRIVER PERSONALIZATION WARNING MESSAGES AND VEHICLE INFORMATION
- WHEELBASE 199 (505.5 CM) 84 CA
- SPARE TIRE DELETE (STD)
- DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS VINYL SEAT TRIM
- RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A2750RDS ratios: 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 6TH Rugged Duty Series includes park pawl
- STEERING WHEEL LEATHER-WRAPPED WITH AUDIO AND CRUISE CONTROLS
- GRILLE CHROME
- BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS includes battery box mounted to left side under cab
- REMOTE KEYLESS ENTRY
- SEATS FRONT 40/20/40 SPLIT-BENCH CLOTH OR VINYL 3-PASSENGER. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)
- FRONT STABILIZER BAR
- STEERING WHEEL AUDIO CONTROLS
- FRONT AXLE 7 500 LB. DANA SPICER 60-256 SINGLE-REDUCTION FRONT DRIVING
- RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
- MIRRORS OUTSIDE BLACK HEATED POWER-ADJUSTABLE HIGH-VISIBILITY VERTICAL CAMPER-STYLE AND LOWER CONVEX SPOTTER GLASS MANUAL-FOLDING. Convex glass is not heated and not power adjustable. 102 Wide Load
- GVWR 23 000 LB. (10 433 KG)
- 34 000 LB. GCWR (15 422 KG)
- BUMPER FRONT CHROME
- TIRES REAR 225/70R19.5H TRACTION BLACKWALL CONTINENTAL Max Axle Load: 16 000 lb.
- SKID PLATE STEEL FRAME-MOUNTED PROTECTS THE TRANSFER CASE FROM THE GROUND
- ELECTRICAL PROVISIONS REAR OF CAB UPFITTER BODY BUILDER WIRING includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
- ENGINE BLOCK HEATER
- AUDIO SYSTEM CHEVROLET INFOTAINMENT SYSTEM WITH 8 DIAGONAL COLOR TOUCH-SCREEN AM/FM stereo with seek-and-scan and digital clock includes Bluetooth handsfree calling and streaming audio with select phones; wired phone projection via select 3rd party apps; USB ports; auxiliary jack; voice-activated technology for radio and phone; and Shop with the ability to browse select and install apps to your vehicle. Apps include Pandora iHeartRadio The Weather Channel and more. Includes (TG5) Single-slot CD/MP3 player (UDD) 4.2 diagonal Driver Information Center (NP5) Leather-wrapped steering wheel and (UK3) Steering Wheel Audio Controls. Requires (A52) Front 40/20/40 split-bench seats.)
- ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2500 rpm 750 lb.-ft. torque @ 1400 rpm (STD)
- REAR SUSPENSION 15 500 LB. (7 031 KG) MULTI-LEAF VARI-RATE
- SUMMIT WHITE
- AXLE TO END OF FRAME 63
- WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
- PAINT SOLID
- SEAT ADJUSTER DRIVER 10-WAY POWER
- WHEELS 19.5 X 6.75 4-ALUMINUM WHEELS 8-HOLES HUB PILOTED Dura-Bright finish is on the outside of the wheel
- DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
- REAR AXLE 4.30 RATIO Max road speed: 75 MPH
- ALTERNATOR 220 AMPS
- TIRES FRONT 225/70R19.5H TRACTION BLACKWALL CONTINENTAL Max Axle Load: 8 000 lb.
- SINGLE-SLOT CD/MP3 PLAYER
- REAR AXLE 15 500 LB. (7 031 KG) DANA SPICER S16-140 SINGLE REDUCTION
- EXHAUST SYSTEM STRAIGHT TERMINATES AHEAD OF REAR WHEELS
- POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left-hand and right-hand side
- POWER OUTLET 110-VOLT AC
- 6500 HD SERIES
- Door handles Black
- Bumper front Black
- Front fender extension painted body color
- Mirrors outside high-visibility vertical camper-style Black with manual folding and extension and lower convex spotter glass
- Spare tire delete
- Grille guard screen insect protection (mounted behind grille)
- Antenna fixed mast
- Lamps rear stop/turn/backup (1-piece assembly) with license plate light
- Assist steps
- Lamps Smoked Amber roof marker
- Headlamps halogen projector-beam
- Grille base molded in color Black
- Lamps cargo area cab mounted with switch on center switch bank
- Tires rear 225/70R19.5G highway blackwall Pirelli Max Axle Load: 15 000 lb. (Requires (XEY) Tires front 225/70R19.5G Highway blackwall Pirelli.)
- Glass solar absorbing tinted
- Wheel spare delete
- Tires front 225/70R19.5G highway blackwall Pirelli Max Axle Load: 7 940 lb. (Requires (YEY) Tires rear 225/70R19.5G highway blackwall Pirelli Max Axle Load: 15 000 lb. or (YEZ) Tires rear 225/70R19.5G traction blackwall Pirelli Max Axle Load: 15 000 lb.)
- Door locks power
- Visors driver and front passenger vinyl
- 6-speaker audio system
- Windows power with driver express up and down and express down on all other windows
- Seat Belt Black
- Speedometer miles/kilometers
- Seat trim Vinyl
- Mirror inside rearview manual day/night
- Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
- Seat rear 60/40 folding bench (folds up) 3-passenger (includes child seat top tether anchor)
- Steering column manual Tilt-Wheel
- Air conditioning single-zone
- Assist handle front passenger and driver on A-pillars
- Driver Information Center 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information (Included and only available with (IO3) Audio System with 4.2 diagonal color display or (IOR) Chevrolet Infotainment System with 7 diagonal color touch-screen.)
- Seats front 40/20/40 split-bench 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
- Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
- Cruise control steering wheel-mounted
- Instrumentation 6-gauge cluster featuring speedometer fuel level engine temperature tachometer voltage and oil pressure
- Steering wheel urethane
- Audio system 4.2 diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.)
- SiriusXM delete
- Floor covering Graphite-colored rubberized-vinyl
- Rear Vision Camera display integrated into Radio (Shipped loose in cab for upfitter installation.)
- StabiliTrak Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
- Brake parking driveline park brake system
- Daytime Running Lamps with automatic exterior lamp control
- Traction control
- Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
- OnStar delete
- Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
- Horn single-note
- Emissions USA 50 State certified
- Exhaust brake
- Front axle 7 500 lb. Dana Spicer 60-256 single-reduction front driving
- Fuel tank rear only 40 gallon mounted between frame side rails and behind rear axle
- Axle lubricant front synthetic oil EmGard FE-75W-90
- Neutral-at-Stop Automatic transmission shifts to neutral when the service brake is depressed while the vehicle is at a complete stop and remains in neutral until the service brake is released
- Engine Duramax 6.6L Turbo-Diesel V8 B20-Diesel compatible 350 hp @ 2500 rpm 750 lb.-ft. torque @ 1400 rpm
- Capped Fuel Fill
- Fuel diesel B20
- Alternator 150 amps
- Batteries heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
- GVWR 16 500 lb. (7484 kg) (Silverado 4500 HD 4WD models require one of the following combinations: (1) (FTB) 7.5k front axle and (FTV) 7.5k front suspension and (FN1) 10k rear axle or (GL4) 11k rear axle and (GR3) 11k rear suspension. (2) (FTB) 7.5k front axle and (FTV) 7.5k front suspension and (HD1) 15k rear axle or (J27) 15.5k rear axle and (GR4) 13.5k rear suspension or (FU7) 15.5k rear suspension. (3) (FTB) 7.5k front axle and (FTV) 7.5k front suspension and (J27) 15.5k rear axle and one of the following rear suspensions: (91B) 13.5k LiquidSpring prep single volume rear suspension (91C) 13.5k LiquidSpring prep stacked volume rear suspension (91D) 15.5k LiquidSpring prep single volume rear suspension or (91E) 15.5k LiquidSpring prep stacked volume rear suspension.)
- Transmission shift control calibration fuel sense Performance
- Wheelbase 175 (444.5 cm) 60 CA (Requires (F0C) 49 axle to end of frame. Not available with (N12) straight exhaust system that terminates ahead of rear wheels or (NPK) right side exit exhaust ahead of rear wheels.)
- Front suspension 7 500 lb. (3 402 kg) multi-leaf includes shock absorbers
- Axle Open rear axle non-locking rear
- Steering power (Bosch S2 8014 Plus)
- Trailering provisions trailering wire harness only trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
- Exhaust system right side exit behind rear wheels (Requires (FNV) 175 wheelbase.)
- Trailer brake controller integrated
- Four wheel drive
- Incomplete vehicle
- Axle lubricant rear synthetic oil EmGard FE -75W-90
- Rear axle 11 000 lb. (4 999 kg) Dana Spicer S14-110 single reduction
- Highway Service Transmission Automatic close-ratio 6 SPD with double overdrive Allison A1700HS ratios: 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 6TH Highway Series 19.5K GVW & 26K GCW Max. requires PTX and park pawl. Available with GVWs less than or equal to 19.5K (Requires (C7Y) 14 001
- View All
Body Details

PAL Pro 43 Features
When the perfect blending of weight, storage space, strength and durability are what you are looking for then the PAL Pro Series of Crane Bodies are what you need. The PAL Pro 43 will handle any crane rated for a load moment of 43,000 ft/lbs., with a max loading moment of 50,000 ft/lbs. Available in many standard 9' and 11' configurations, it is designed with a hybrid torsion box and ladder frame understructure utilitizing the hightest quality 10ga A60 galvanenneal and structural steel cross members for superior strength.
The frame, bumper, outrigger tubes and crane box are all integrated to deliver the force of the crane load to the outriggers, leaving the body untouched by the load forces. The body is made from 12ga A60 galvanneal, with treadplate topes and load space. Eight 6,000 lb. tie downs in the floor of the body, a 5/16" top plate on the bumper, 2" hitch receiver and 3 point latching doors are all standard.
The doors are a two piece top hat design held together with automotive adhesive to eliminate welds, and utilize 316 marine grade stanless steel hinges. All this, plus a 12 step e-coat dip process for the primer and 6 year warranty on the body and hardware -- and you have the new standard in superior crane bodies.

Berger Price | Call For Pricing |
Pricing Details
List Price | $195,957 |
GM BUSINESS CHOICE | - $300 |
Berger Price | $195,657 |
Total Savings | $300 |
Vehicle available NOW in Grand Rapids, MI.
Contact Berger Chevrolet, Inc. for more info.
(616) 426-6448
