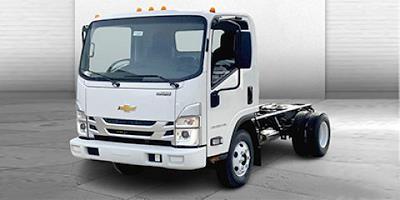

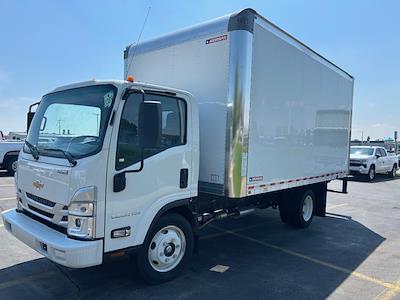

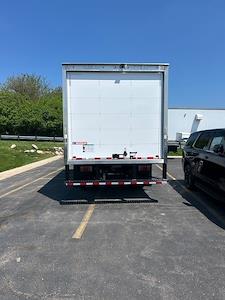

2025 Chevrolet LCF 5500XG Regular Cab 20' Morgan Van Body 102" Wide
Stock #25LC9F
Vehicle Notes
MORGAN 20' GVSD W 102' WIDE
Chassis Details
Stock Number
25LC9F
Stock Type
New
Year
2025
Make
Chevrolet
Model
LCF 5500XG
Class
5
GVWR
19,500
Drivetrain
RWD
Wheelbase
176
Cab Type
Regular
Vehicle VIN
54DEEW1D3SSR00051
Interior Color
Medium Ash Gray
Exterior Color Description
White
Engine Cylinder Count
8
Engine
Gas V8 6.6L/
Transmission Type
Automatic
Rear Wheels
Dual
Fuel Type
Gasoline
Engine Model
L8T
Engine Size (L)
6.6
Brake Type
Hydraulic
Suspension Type
Spring
Vehicle Options
- PIO FIRE EXTINGUISHER AND SAFETY TRIANGLE INCLUDES STORAGE/MOUNTING PROVISIONS (Port Installed Option)
- ARC WHITE
- PIO SEAT HIGH BACK DRIVER ONLY TORSION-BAR WITH FOAM PADS SUSPENSION SYSTEM AND FIXED PASSENGER SEAT (Port Installed Option)
- ENGINE 6.6L V8 SIDI GMPT-V8 8 CYLINDER V IRON BLOCK FOUR CYCLE OVERHEAD valve water cooled 6.6L SIDI V8 350 hp [261 kW] @ 4500 rpm 425 lb.-ft of torque [575.8 N-m] @ 3800 rpm. Electronically controlled direct fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control engine oil cooler High Idle Mode (1200 rpm). (STD)
- PIO AUDIO SYSTEM ENHANCED AUDIO SYSTEM with 7 diagonal color touchscreen AM/FM stereo with seek-and-scan and digital clock. Additional features include: Bluetooth capability SiriusXM capable (requires separate SiriusXM tuner plus customer subscription) Apple CarPlay/Android Auto capable Navigation via Apple CarPlay/Android Auto and Rear Vision Camera. (Port Installed Option) (Includes (UVC) Rear Vision Camera PIO.)
- PIO LED LIGHTING PACKAGE upgrades interior and exterior incandescent light bulbs to LED (Port Installed Option)
- PIO REAR VISION CAMERA (Port Installed Option)
- PRE-DELIVERY INSPECTION Provides Pre-Delivery Inspection at the Port in cases where the vehicle needs to leave the port directly for the final stage manufacturing process and will not visit a dealer. NOTE: General Motors Company will not pay Dealer for Pre-Delivery Inspections when this option is selected.
- WHEELS 19.5 X 6 STEEL (STD)
- MEDIUM ASH GRAY CLOTH SEAT TRIM
- PIO BACK-UP ALARM (Port Installed Option)
- PIO EXTRA SET OF KEYS provides customer with a total of 4 keys (Port Installed Option).
- TRANSMISSION ALLISON 1000 RDS 6-SPEED AUTOMATIC. PTO NOT AVAILABLE. (STD)
- OCEAN FREIGHT SURCHARGE
- PREFERRED EQUIPMENT GROUP includes standard equipment
- PIO MIRROR OUTSIDE LEFT-HAND AND RIGHT-HAND WITH INTEGRAL CONVEX MIRRORS HEATED DUAL REMOTE CONTROLS (Port Installed Option)
- REAR AXLE 5.37 RATIO
- PIO SEAT-COVER PROTECTOR PROVIDES PROTECTION FOR ALL SEATING POSITIONS FOR VEHICLES WITH DRIVER SUSPENSION SEAT (Port Installed Option)
- PIO REMOTE KEYLESS ENTRY (Port Installed Option)
- AXLE LIMITED SLIP
- LED Headlamps
- Windshield wiper pulse wet arm
- Wheels 19.5 x 6 steel
- Grille Silver
- Tires front 225/70R19.5 G LRR (low rolling resistance) tubeless steel belted radial all-season
- Glass tinted
- Mirror outside left-hand and right-hand with integral convex mirrors
- Tires rear 225/70R19.5 G LRR (low rolling resistance) tubeless steel belted radial all-season
- Assist steps
- Windshield washer bottle access on passenger side dash when passenger-side door is open
- Driver Information Center
- Cruise control electronic automatic
- Cup holders
- Audio system feature 2 speakers
- Audio System AM/FM stereo with CD player auxiliary jack USB port and Bluetooth
- Steering wheel urethane
- Door locks power
- Storage door pockets
- Windows power
- Seat front high back bucket driver and passenger tricot cloth covered reclining high back driver seat with single two-occupant fold down passenger seat
- Steering column Tilt-Wheel
- Seat trim Cloth
- Storage seatback pockets
- Air conditioning single-zone manual integral in-dash mounted
- Floor mats
- Lighting interior dome
- Brake parking cable actuated internal expanding drum type transmission-mounted
- Daytime Running Lamps
- Brakes 4-wheel antilock front and rear disc
- Battery 750 cold-cranking amps 12-volt single maintenance free frame-mounted battery box
- Wheelbase 176 (447.0 cm)
- Fuel tank 38.6 Gallon (146L) rectangular fuel tank mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill.
- Front axle 7275 lbs. (3300 kg) reverse Elliot I-beam
- Drivetrain rear-wheel drive
- Frame ladder-type channel frame. Full C section straight frame 33.5 (85.1 cm) wide. Yield strength 44 000 psi section modulus 7.20 cu.in. and RBM 316 800 lb-ft/in per rail.
- GVWR 19 500 lbs. (8845 kg)
- Transmission Allison 1000 RDS 6-speed automatic. PTO not available.
- Rear suspension 14 550 lbs. (6600 kg) multi-leaf semi-elliptical steel alloy. Includes shock absorbers
- Engine 6.6L V8 SIDI GMPT-V8 8 cylinder V Iron block four cycle overhead valve water cooled 6.6L SIDI V8 350 hp [261 kW] @ 4500 rpm 425 lb.-ft of torque [575.8 N-m] @ 3800 rpm. Electronically controlled direct fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control engine oil cooler High Idle Mode (1200 rpm).
- Vehicle Application Truck
- Exhaust single outlet
- Incomplete vehicle certification
- Rear axle 5.37 ratio
- View All
Body Details
Manufacturer
Body Type
Box Truck
Body Model
GVSD09120102
Body Material
Aluminum
Body Length
20'
Body Width
102"
Body Inside Height
91"
Bumper Description
5” Structural Bumper With Pooched Surface And Closure Plate
Door Type
Roll Up
Door Location
Rear
Door Width
94"
Door Height
85.25"
Floor Description
1-1/8" Laminated Hardwood Floor
Lighting Description
Dome Light With Indicator Switch Mounted In Cab Dash
Lighting Location
Interior
Lighting Type
LED
Lighting Description
LED Sealed Clearance Lights | Per FMVSS-108 Installed In Front Corner Caps, Side Top Rails And Five Across Rear Header
Lighting Location
Exterior
Mud Flaps Description
Morgan 24" x 36" Black
Roof Type
Translucent
Cargo Control Type
E-Track
Camera Description
Factory Backup Camera
Gold Star Features
- SUBFRAME - 3" I-beam Crossmembers On 12" Centers With 4" Longrail , Mylar Tape Is Applied Between All Steel Subframe Components And Extruded Aluminum Lower Bottom Rails To Prevent Corrosion
- FLOOR - 1- 1/8” Laminated Hardwood Fastened To Subframe With 2 Countersunk Screws Per Floor Board Per Cross Member In A Staggered Pattern. Floor Boards Are Ship Lapped And Preundercoated For Protection From Elements.
- THRESHOLD - Steel Galvanized Angle Flush To Rear
- REAR DOOR - Overhead Roll-up Door
- REAR FRAME - Galvannealed Steel -painted Imron White, Includes Built-in Header Design, Clearance Light Protector And Rain Deflector, Curbside And Roadside Grab-handles
- ROOF - .032” One-piece Aluminum Sheet With Anti-snag Roof Bows On 24” Centers With Crowned Roof Design Which Prevents Water/Ice Pooling
- SKINS - .040“ Aluminum, Pre-painted White
- SIDE WALL - Extruded Aluminum Top And Bottom Rails With 1-3/8” Deep Galvanized Steel Z-shaped Vertical Posts Installed On 16” Centers
- FRONT END - Aerodynamic Aluminum Radii and Morgan’s Patented Poly-tuff Corner Caps
- BUMPER - 5” Structural Bumper With Pooched Surface And Closure Plate
- INTERIOR LIGHTING - (1) Domelight With Indicator Switch Mounted In Cab Dash
- EXTERIOR LIGHTING - Led Sealed Clearance Lights, Per Fmvss-108 Installed In Front Corner Caps, Side Top Rails And Five Across Rear Header.
- MOUNTING - Full Mount-u Bolt
- MUDFLAPS - Morgan 24" X 36" Black
Upfit Notes
- 176 WB
| Berger Price | Call For Pricing |
Pricing Details
| List Price | $100,575 |
| GM BUSINESS CHOICE | - $750 |
| GM National Rebate | - $1,750 |
| Dealer Discount | - $13,499 |
| Berger Price | $84,576 |
| Total Savings | $15,999 |
| Conditional Rebates | |
| GM FLEET FROM STOCK | - $1,250 |
Upfitting In Progress
Check with dealer for availability.
Contact Berger Chevrolet, Inc. for more info.
(616) 426-6448
Disclaimer:
Contact dealer for additional discounts and rebates. Tax, title, license and dealer fees (unless itemized above) are extra. May not be available with special finance or lease offers. EPA Estimates Only.
